Kafka FAQ

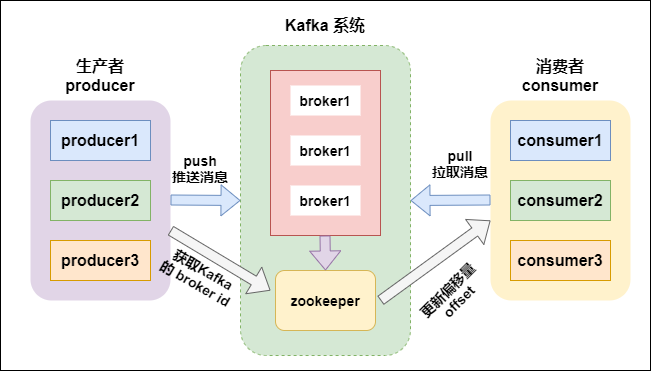

1) Explain kafka architecture ?

  • Feature

    • kafka is a sustainable distributed pub-sub (publish-subscribe) message system
    • developed by Linkedin via scala
    • can work with both online and offline msg. Data saved on disk with replica -> prevent data lost

  • Component

    • Broker
      • kafka cluster has many nodes
      • A broker is a node/server
    • Topic
      • every event on kafka belongs to a class, which is “topic”
      • each topic for different data source (feeds of messages)
      • can have unlimit topics
      • producer-subscriber use “topic” as basic unit. Can split further via topic partition
    • Partition
      • each topic has multiple partitions
      • NOTE : same broker can have multiple partition -> broker count has NO relation to partition count
      • each topic has a partition id. Start from 0
      • NOTE !!! :
        • data in each partition can be ordering. But CAN’T guarantee global data (all data in topic) is ordering
        • ordering : keep the same ordering in producer’s data and data read by consumer
      • partition defines the MAX “con-current” consumer in the same consumer group
      • So, we can raise consuming speed, if we have more partition

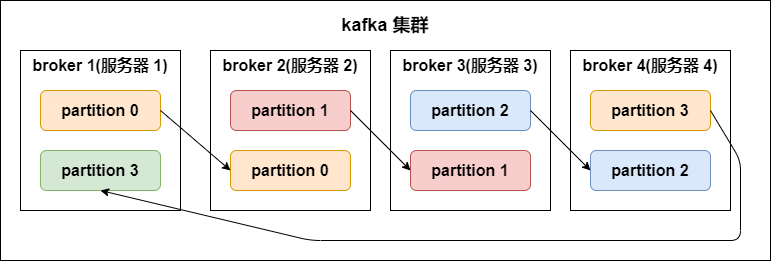

    • Partition replicas
      • replication-factor
        • define how many replicas (on different brokers).
        • # of replicas == # of broker in general
        • Each partition has its own leader replica and follower replica
          • e.g. 1 leader, N followers -> N replicas
        • the follower replica which is in sync called “in-sync-replicas(ISR)”
        • NOTE !!! : producer and consumer BOTH read and write data from leader replica, NOT interact with follower replica
        • For data reliability when data I/O
        • if leader down, then will raise the other follower as new leader
    • Segment
      • each partition has multiple segments.
        • Each segment has 2 parts:
          • .index : index file (for .log). for finding offset in .log file
          • .log : record actual event data
        • Name convention
          • consider “global partition”. Start from 0
          • Next segment name if last partition’s MAX offset (offset msg count)
          • offset is 64 bit Long, 20 digit nunber, filled with 0 if no digit

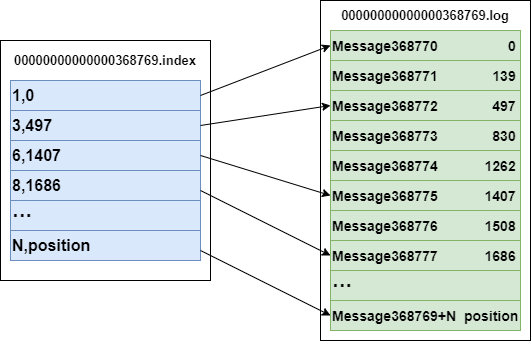

      • example:
        • 3,497 in index : means 3rd msg in .log file, and its offset = 497
        • Message 368772 in log : means it’s 368772 rd msg in global partition
        • .log and .index
        # file structure
/<topic_name>-<partition_name>
/.../xxx.index
/.../xxx.log

# index file
00000000000000000000.index   // <offset>.index
# log content
00000000000000000000.log     // <offset>.log

        # example
-rw-r--r--. 1 root root 389k  1月  17  18:03   00000000000000000000.index
-rw-r--r--. 1 root root 1.0G  1月  17  18:03   00000000000000000000.log
-rw-r--r--. 1 root root  10M  1月  17  18:03   00000000000000077894.index
-rw-r--r--. 1 root root 127M  1月  17  18:03   00000000000000077894.log
    • Producer
      • msg producer, send msg to kafka broker
      • write data to leader replica
    • Consumer
      • msg consumer (client), read msg from kafka
      • consumer MUST belong to a consumer group
      • read data from leader replica
      • NOTE !!! : # of consumer should <= # of partition in topic
        • since same data should ONLY be consumed by one consumer under same consumer group at once
    • Consumer group
      • each consumer belogs to a specific consumer group (we can define consumer’s group name)
      • SAME consumer in SAME consunmer group ONLY consume same msg ONCE
      • each consumer has a ID (group ID). All consumers can subscribe all partition under a topic
      • each partition CAN ONLY be consumed by A consumer under a consumer group

  • Pic

  • Ref

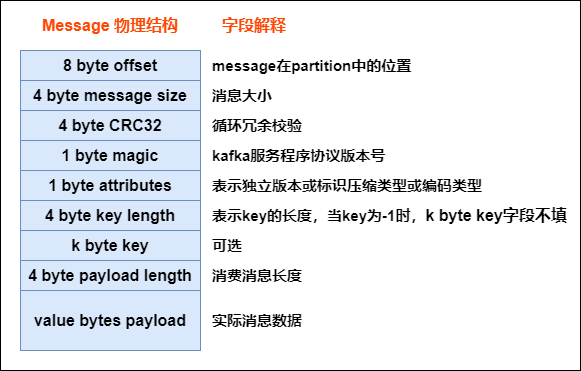

1’) Kafka message structure ?

  • As below, every msg sent from producer will be pre-processed via kafka, then saved as below structure (in kafka broker). Only last field is the actual data from broker
  • Pic

1’') How kafka find .log file via index ?

1’‘’) Explain how does zookeeper (ZK) work in kafka ? how kafka interact with offset via ZK ?

2) How does kafka implement exactly once ?

  • please check below Idempotence (冪等性), transactional (事務性)
  • TL;DR
    • PID (producer ID), sequence number
    • transaction

3) How kafka avoid data missing ?

  • Producer
    • Via ACK
    • Can use sync, async mode send data to kafka
    • Mode
      • Sync
        • send a batch data to kafka, wait for kafka’s response
          • producer wait 10 sec (?), if no ACK response, mark as failure
          • producer retry 3 times (?), if no ACK response, mark as failure
      • Async
        • send a batch data to kafka, ONLY offer a callback() method
        • save data in producer’s buffer first, buffer size is about 20k
        • if meat threshold, then can send data (to kafka)
        • size of batch data is about 500
        • NOTE : if there is no ACK from kafka broker, but producer buffer is full, developer can decide mechanisms whether clean buffer or not (programmatically)
  • Broker
    • Via Partition replicas avoid data missing
  • Consumer
    • Each consumer record/maintain its own offset. can avoid data missing
    • We can save offset on client’s file system, DB, Redis…

3’) Explain kafka ACK ?

  • request.required.acks : how to acknowledge when kafka writes producers’ messgage to its (kafka) copy
  • A tradeoff between efficiency (response speed) and reliability (fault tolerance)
  • cases
    • ack = 1 (default)
      • when producer -> kafka broker. if kafka leader comfirms msg received successfully -> Success, will lost data if leader down before followers sync
    • ack = 0
      • whenever producer -> kafka broker, mark it as success. Highest speed, will lost data if broker down
    • ack = -1 (or all)
      • when producer -> kafka broker, have to wait leader and ALL followers' confirmation. Slowest speed, but make sure NO data lost.
  • Ref

4) Explain kafka basic data model ?

5) Explain how does kafka save data (low level, file system level) ?

  • File
    • .log : file save data
    • .idnex : file save .log files’ index

6) Explain kafka master, slaves relation ? regarding data partition, … ?

7) Steps when a consumer consumes a kafka topic ?

8) Explain kafka’s Idempotence (冪等性)

  • Idempotence -> when run same process multiple times, the result SHOULD BE THE SAME
  • core concept : PID（Producer ID), sequence number
  • kafka gives each producer a PID, also maintain a <PID, Partition> -> sequence number mapping for each Partition in each producer
  • Can ONLY make sure Idempotence inside producer, can’t guarantee if producer down and restart
  • Can ONLY make sure Idempotence inside single partition, can’t across topic-partition
  • Implementation
    • Broker
      • when get event
        • If sequence number = "<PID, Partition>"'s sequence number + 1 : broker accept this event
        • If sequence number < "<PID, Partition>"'s sequence number: duplicated event, broker will neglect it
        • If sequence number > "<PID, Partition>"'s sequence number: there is data missing, broker will raise OutOfOrderSequenceException exception
    • Producer
      • PID（Producer ID) :
        • use Properties.put(“enable.idempotence”,true); enable Idempotence
        • recognize each producer client
        • every producer gets a global unique PID when init
        • if producer resrart, it will get a new PID
        • for each PID, sequence number starts from 0
        • each topic-partition has a independent sequence number
        • apply PID via ZK:
          • step 1) get /latest_producer_id_block from zk for lastest allocated PID
          • step 2) if such node is new, start PID from 0 (0-1000), get 1000 PID at once (default)
          • step 3) if such node existed, get its data, get PID based on block_end
          • step 4) get PID, and write such inform back to ZK, if writes success -> whole process OK, if fail, means maybe node already updated/other, will redo from step 1)
      • Sequence number :
        • every msg (from producer client) has this value, for checking if a record is duplicated
  • Ref

9) Explain kafka’s transactional (事務性)

  • offer “partition writing” ATOM -> ONLY when ALL ops success, then commit and say these ops are success, else -> rollback (e.g. ALL success or ALL failure)
  • core concept :
    • TransactionalId
    • _transaction_state（Topic)
    • Producer epoch
    • ControlBatch (aka Control Mesage, Transaction Marker)
      • special event sent from producer to kafka topic.
      • 2 types: COMMIT, ABORT (commuit success or not)
    • TransactionCoordinator
  • why not use producer id (PID), but introduce TransactionalId ?
    • producer id (PID) get refreshed when producer restart, so we use TransactionalId make each event unique
  • make sure “exactly once”

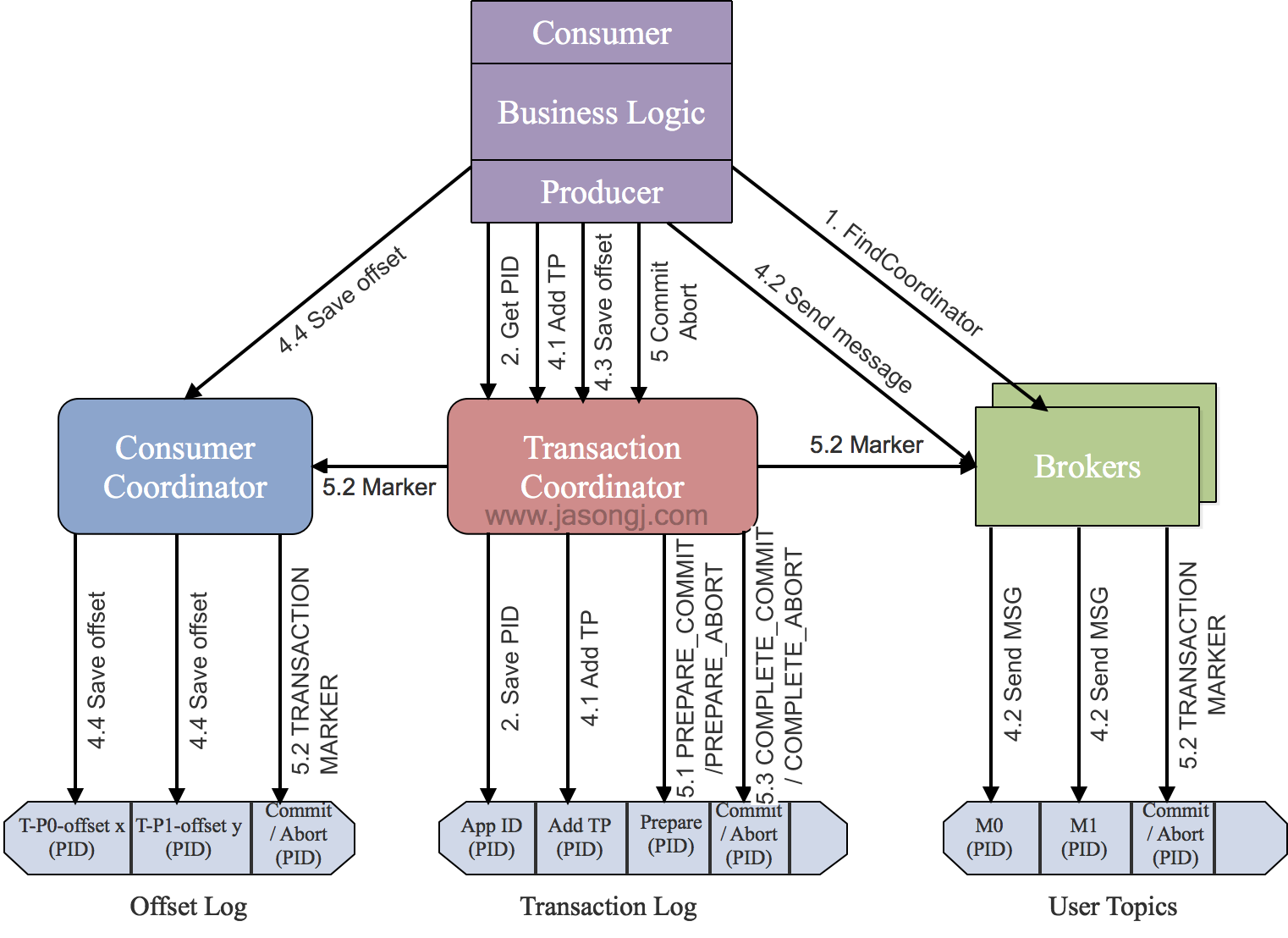

  • Implementation
    • step 1) find Tranaction Corordinator (TC)
      • producer sends FindCoordinatorRequest to a broker, then finds a TC, and gets its node_id, host, port
    • step 2) init initTransaction
      • producer sends InitpidRequest to TC, gets PID (producer ID), TC will record <TransactionalId,pid> to Transaction Log, state infromation (e.g. Empty/Ongoing/PrepareCommit/PrepareAbort/CompleteCommit/CompleteAbort/Dead) is also included
      • Commit/Abort non-completed tasks
      • add PIC with epoch, make transaction in producer
    • step 3) begin Transaction
      • run producer’s beginTransacion(). Will mark a transaction as “start” state in local record.
    • step 4) read-process-write
      • Once producer start sending event, TC will save <Transaction, Topic, Partition> to Transaction Log, and set it “start” state, also record the time.
      • Broker will save sent event in its disk (without commit/abort). If there is an “abort”, msg on broker will NOT be canceled, but changed state to “abort”
    • step 5) commitTransaction/abortTransaction
      • while producer run commit/abort, TC will do 2 phase commit
        • phase 1 : modify Transaction log to PREPARE_COMMIT or PREPARE_ABORT
        • phase 2 : modify all events written by Transaction Marker to committed or aborted
      • once Transaction Marker complete writing, TC will write final status to Transaction log and mark such transaction is completed
  • pic
  • Ref

9’) Explain Transaction Coordinator and it mechanism ?

10) Explain AR（Assigned Replicas), ISR (In-sync replica), and OSR（Out-of-Sync Replicas）?

11) Describe kafka limitation ?

  • auto scale : it’s hard to scale down if scale out first (modify partition data in topics)
    • can have 2 kafka clusters, if one wants to scale up/down still. (Use the other service request first, avoid downtime)
  • keep published event in ordering in global

12) Explain why kafka can do high I/O ?

13) Explain kafka topic partition strategy ?

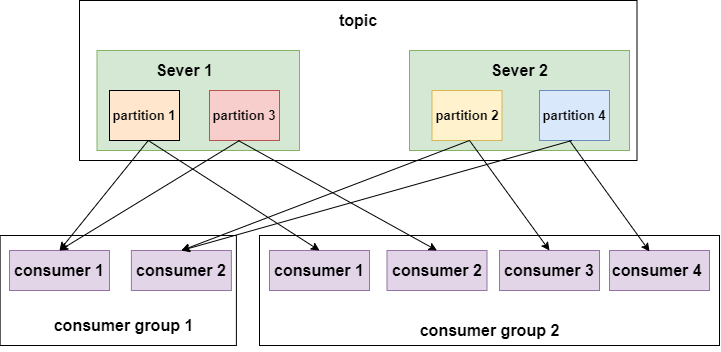

14) What’s if multiple consumers in same consumer group ?

  • Can multiple Kafka consumers read same message from the partition ?

  • swf ref

  • o relly ref

  • https://youtu.be/a_Oafk7fAjY?si=w6V-rpDUMjyswRRw&t=1538

  • Kafka consumers are typically part of a consumer group. When multiple consumers are subscribed to a topic and belong to the same consumer group, each consumer in the group will receive messages from a different subset of the partitions in the topic.

  • 如果ㄧ個consumer group 裡有複數個consumer -> 每個consumer只會收到topic部分的訊息

  • 如果consumer 分屬不同 consumer group (訂閱同個topic) -> 每個consumer都會收到topic全部訊息

  • In same group : No

    • Two consumers (Consumer 1, 2) within the same group (Group 1) CAN NOT consume the same message from partition (Partition 0)

  • In different group : Yes

    • Two consumers in two groups (Consumer 1 from Group 1, Consumer 1 from Group 2) CAN consume the same message from partition (Partition 0).

14) streaming model ?

Note : In kafka, the concept of “consumer group” offers the generic of mix above

  • multiple consumers in same group ~= reading from queue

Ref
