Binary Tree

Table of Contents

# Binary Tree

# Overview

Binary Tree is a hierarchical data structure where each node has at most two children (left and right). It forms the foundation for many advanced data structures like BST, Heap, and is crucial for understanding tree-based algorithms.

# Key Properties

  • Time Complexity:
    • Access/Search: O(n) worst case, O(log n) balanced
    • Insert/Delete: O(n) worst case, O(log n) balanced
  • Space Complexity: O(n) for storing n nodes
  • Core Idea: Hierarchical structure with recursive properties
  • When to Use: Hierarchical data, searching, sorting, decision making, expression parsing

# References

# Problem Categories

# Pattern 1: Tree Traversal

  • Description: Visit all nodes in specific order (preorder, inorder, postorder, level-order)
  • Recognition: “Visit all nodes”, “print tree”, “serialize tree”
  • Examples: LC 94, LC 144, LC 145, LC 102
  • Template: Use Traversal Templates

# Pattern 2: Tree Construction

  • Description: Build tree from traversal sequences or other representations
  • Recognition: “Construct from”, “build tree”, “deserialize”
  • Examples: LC 105, LC 106, LC 108, LC 297
  • Template: Use Construction Template

# Pattern 3: Path Problems

  • Description: Find paths with specific properties (sum, length, pattern)
  • Recognition: “Path sum”, “root to leaf”, “longest path”
  • Examples: LC 112, LC 113, LC 257, LC 124
  • Template: Use Path Template with backtracking

# Pattern 4: Tree Properties

  • Description: Check or calculate tree properties (height, balance, symmetry)
  • Recognition: “Height”, “balanced”, “symmetric”, “diameter”
  • Examples: LC 104, LC 110, LC 101, LC 543
  • Template: Use Property Check Template

# Pattern 5: LCA & Distance

  • Description: Find common ancestors or calculate distances between nodes
  • Recognition: “Lowest common ancestor”, “distance between nodes”
  • Examples: LC 236, LC 235, LC 863
  • Template: Use LCA Template

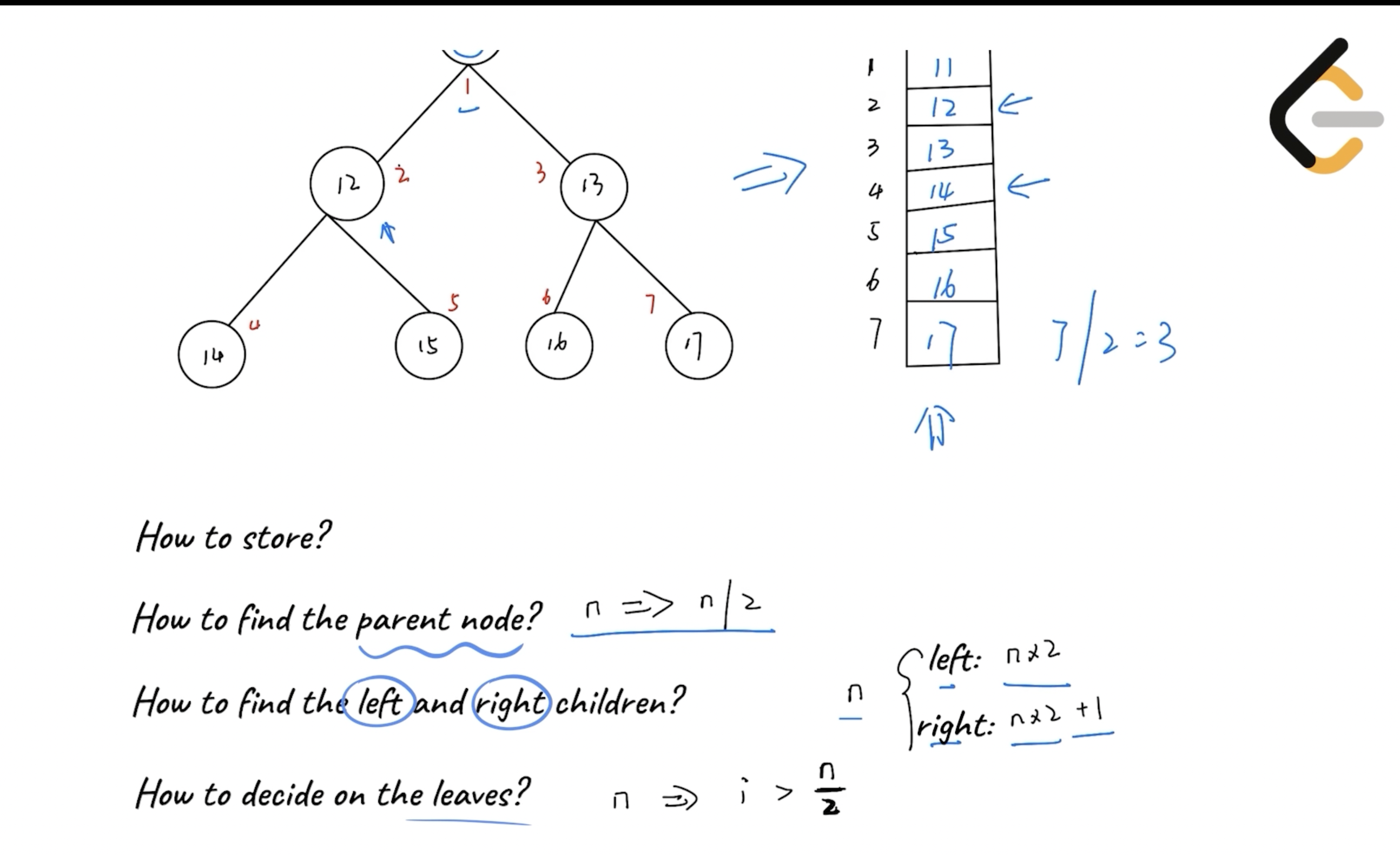

# Complete Tree to Array Representation

  • Note if we use an array to represent the complete binary tree,and store the root node at index 1
    • so, index of the parent node of any node is [index of the node / 2]
    • so, index of the left child node is [index of the node * 2]
    • so, index of the right child node is [index of the node * 2 + 1]
    • https://github.com/yennanliu/CS_basics/blob/master/data_structure/python/MinHeap.py#L36-L40
    • video : very good explanation!!!
    • properties
      • how to store ?
        • via Array and index
      • how to find the parent node ?
        • n / 2
        • NOTE : n is an "index" in array
      • how to find the left and right children ?
        • left children : n * 2
        • right children : n * 2 + 1
      • how to check if a node is leaf node ?
        • check if i > (# of nodes) / 2

# Example:

Let’s say you have a complete binary tree like this:

        10
       /  \
     15    20
    / \    /
   30 40  50

This tree as an array (1-based) would be:

# `n is an "index"` in array

Index:   1   2   3   4   5   6
Value: [10, 15, 20, 30, 40, 50]

Relationships:

  • Node at index 2 (15)

    • Parent: 2 / 2 = 1 → 10
    • Left child: 2 * 2 = 4 → 30
    • Right child: 2 * 2 + 1 = 5 → 40

  • Array to Complete Tree

    • dev

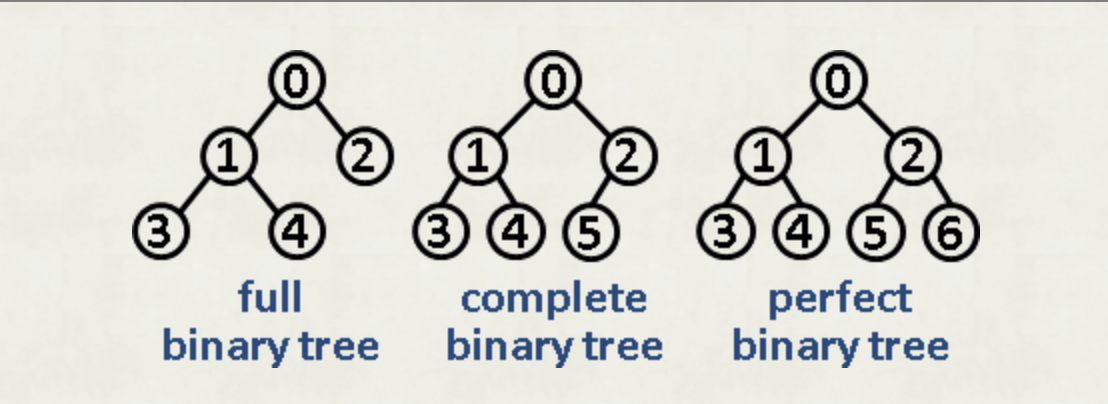

  • Complete binary tree

    • A complete binary tree is a binary tree in which every level, except possibly the last, is completely filled, and all nodes in the last level are as far left as possible.
    • wiki
    • example :
      • complete binary tree

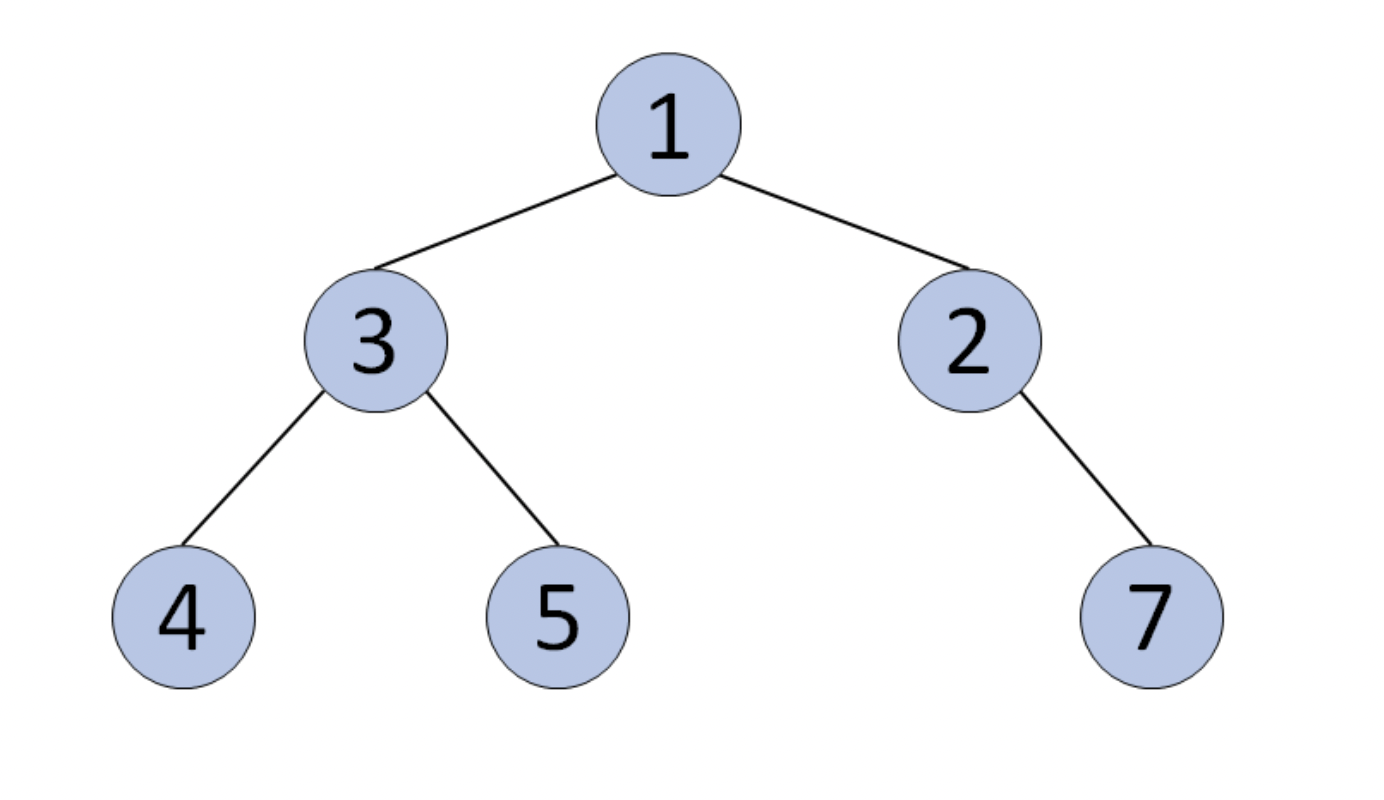

      - NOT complete binary tree

# Templates & Algorithms

# Template Comparison Table

Template Type Use Case Approach Time Space When to Use
Recursive Traversal Simple traversal Recursion O(n) O(h) Default choice, clean code
Iterative Traversal Memory limited Stack/Queue O(n) O(h) Avoid recursion overhead
Morris Traversal Space limited Threading O(n) O(1) Constant space required
Level Order BFS problems Queue O(n) O(w) Level-by-level processing

# Universal Tree Template

def tree_problem(root):
    """
    Universal template for most binary tree problems
    Can be adapted for traversal, calculation, or modification
    """
    # Base case
    if not root:
        return None  # or 0, [], depending on problem

    # Pre-order processing (before recursion)
    # process_current_node()

    # Recursive calls
    left_result = tree_problem(root.left)
    right_result = tree_problem(root.right)

    # Post-order processing (after recursion)
    # combine_results()

    return result

# Template 1: Tree Traversal (Recursive)

# Preorder Traversal
def preorder(root):
    if not root:
        return []
    return [root.val] + preorder(root.left) + preorder(root.right)

# Inorder Traversal
def inorder(root):
    if not root:
        return []
    return inorder(root.left) + [root.val] + inorder(root.right)

# Postorder Traversal
def postorder(root):
    if not root:
        return []
    return postorder(root.left) + postorder(root.right) + [root.val]

# Template 2: Tree Traversal (Iterative)

# Iterative Inorder with Stack
def inorder_iterative(root):
    result, stack = [], []
    current = root

    while current or stack:
        # Go to leftmost node
        while current:
            stack.append(current)
            current = current.left

        # Current must be None, so pop from stack
        current = stack.pop()
        result.append(current.val)

        # Visit right subtree
        current = current.right

    return result

# Level Order with Queue
def level_order(root):
    if not root:
        return []

    result = []
    queue = collections.deque([root])

    while queue:
        level_size = len(queue)
        current_level = []

        for _ in range(level_size):
            node = queue.popleft()
            current_level.append(node.val)

            if node.left:
                queue.append(node.left)
            if node.right:
                queue.append(node.right)

        result.append(current_level)

    return result

# Template 3: Tree Construction

def build_tree_from_traversals(preorder, inorder):
    """
    Construct tree from preorder and inorder traversals
    Key insight: First element in preorder is always root
    """
    if not preorder or not inorder:
        return None

    # Root is first element in preorder
    root = TreeNode(preorder[0])

    # Find root position in inorder to split left/right
    root_idx = inorder.index(root.val)

    # Recursively build subtrees
    # Left subtree: elements before root in inorder
    root.left = build_tree_from_traversals(
        preorder[1:root_idx+1],  # Skip root, take left elements
        inorder[:root_idx]       # Everything before root
    )

    # Right subtree: elements after root in inorder
    root.right = build_tree_from_traversals(
        preorder[root_idx+1:],   # Everything after left subtree
        inorder[root_idx+1:]     # Everything after root
    )

    return root

# Template 4: Path Problems

def path_sum_template(root, target):
    """
    Template for path sum problems
    Can track paths, sums, or other properties
    """
    def dfs(node, current_sum, path):
        if not node:
            return

        # Update current state
        current_sum += node.val
        path.append(node.val)

        # Check if leaf node and condition met
        if not node.left and not node.right:
            if current_sum == target:
                result.append(path[:])  # Copy current path

        # Explore subtrees
        dfs(node.left, current_sum, path)
        dfs(node.right, current_sum, path)

        # Backtrack
        """
        NOTE !!! why do we need backtrack here ? (gemini)
        In simple terms, **backtracking** is the "undo" button for your recursion.


        ### 3. A Visual Example

        Imagine this tree:

        ```text
            1
           / \
           2   3

        ```

        **Without `path.pop()`:**

        1. Go to `1`: `path = [1]`
        2. Go to `2`: `path = [1, 2]`
        3. Finish `2`, go back to `1`.
        4. Go to `3`: `path = [1, 2, 3]`  <-- **ERROR!** (2 shouldn't be here)

        **With `path.pop()`:**

        1. Go to `1`: `path = [1]`
        2. Go to `2`: `path = [1, 2]`
        3. Finish `2`, **`pop()`**: `path = [1]`
        4. Go to `3`: `path = [1, 3]` <-- **CORRECT!**
        """
        path.pop()

    result = []
    dfs(root, 0, [])
    return result

# Template 5: Tree Properties

def tree_property_template(root):
    """
    Calculate tree properties (height, diameter, balance)
    """
    def helper(node):
        if not node:
            return 0  # or (0, True) for multiple values

        # Get info from subtrees
        left_info = helper(node.left)
        right_info = helper(node.right)

        # Calculate current node's property
        current_property = calculate(left_info, right_info)

        # Update global result if needed
        self.result = max(self.result, current_property)

        return current_property

    self.result = 0
    helper(root)
    return self.result

# Template 6: LCA (Lowest Common Ancestor)

def find_lca(root, p, q):
    """
    Find lowest common ancestor of nodes p and q
    """
    if not root or root == p or root == q:
        return root

    left = find_lca(root.left, p, q)
    right = find_lca(root.right, p, q)

    # Both found in different subtrees -> current is LCA
    if left and right:
        return root

    # One or both found in same subtree
    return left if left else right

# Problems by Pattern

# Pattern-Based Problem Classification

# Pattern 1: Tree Traversal Problems

Problem LC # Difficulty Key Technique Template
Binary Tree Inorder Traversal 94 Easy Stack/Recursion Template 1/2
Binary Tree Preorder Traversal 144 Easy Stack/Recursion Template 1/2
Binary Tree Postorder Traversal 145 Easy Stack/Recursion Template 1/2
Binary Tree Level Order Traversal 102 Medium BFS with Queue Template 2
Binary Tree Zigzag Level Order 103 Medium BFS + Direction Template 2
Binary Tree Right Side View 199 Medium Level Order/DFS Template 2
Binary Tree Vertical Order 314 Medium BFS + HashMap Template 2
Find Bottom Left Tree Value 513 Medium Level Order Template 2

# Pattern 2: Tree Construction Problems

Problem LC # Difficulty Key Technique Template
Construct from Preorder & Inorder 105 Medium Index mapping Template 3
Construct from Inorder & Postorder 106 Medium Index mapping Template 3
Construct from Preorder & Postorder 889 Medium Recursion Template 3
Convert Sorted Array to BST 108 Easy Binary Search Template 3
Serialize and Deserialize Tree 297 Hard BFS/DFS Template 3
Construct from String 536 Medium Stack/Recursion Template 3

# Pattern 3: Path Problems

Problem LC # Difficulty Key Technique Template
Path Sum 112 Easy DFS Template 4
Path Sum II 113 Medium DFS + Backtrack Template 4
Binary Tree Paths 257 Easy DFS + Path Track Template 4
Sum Root to Leaf Numbers 129 Medium DFS Template 4
Binary Tree Maximum Path Sum 124 Hard DFS + Global Max Template 4
Longest Consecutive Sequence 298 Medium DFS + Counter Template 4
Path Sum III 437 Medium Prefix Sum Template 4

# Pattern 4: Tree Properties Problems

Problem LC # Difficulty Key Technique Template
Maximum Depth 104 Easy DFS/BFS Template 5
Minimum Depth 111 Easy DFS/BFS Template 5
Balanced Binary Tree 110 Easy Height Check Template 5
Diameter of Binary Tree 543 Easy DFS + Max Template 5
Symmetric Tree 101 Easy Mirror Check Template 5
Same Tree 100 Easy Simultaneous DFS Template 5
Count Complete Tree Nodes 222 Medium Binary Search Template 5

# Pattern 5: LCA & Distance Problems

Problem LC # Difficulty Key Technique Template
Lowest Common Ancestor 236 Medium DFS Template 6
LCA of BST 235 Easy BST Property Template 6
Distance K from Target 863 Medium Graph Convert Template 6
LCA of Deepest Leaves 1123 Medium DFS + Depth Template 6

# Complete Problem List by Difficulty

# Easy Problems (Foundation)

  • LC 94: Binary Tree Inorder Traversal - Basic traversal
  • LC 100: Same Tree - Tree comparison
  • LC 101: Symmetric Tree - Mirror property check
  • LC 104: Maximum Depth - Basic recursion
  • LC 108: Convert Sorted Array to BST - Array to tree
  • LC 110: Balanced Binary Tree - Height calculation
  • LC 111: Minimum Depth - BFS for shortest path
  • LC 112: Path Sum - Simple path tracking
  • LC 144: Binary Tree Preorder Traversal - Stack usage
  • LC 145: Binary Tree Postorder Traversal - Stack manipulation
  • LC 226: Invert Binary Tree - Tree modification
  • LC 235: LCA of BST - BST properties
  • LC 257: Binary Tree Paths - Path collection
  • LC 543: Diameter of Binary Tree - Global max pattern
  • LC 572: Subtree of Another Tree - Tree matching

# Medium Problems (Core)

  • LC 102: Binary Tree Level Order Traversal - BFS foundation
  • LC 103: Binary Tree Zigzag Level Order - Level with direction
  • LC 105: Construct from Preorder & Inorder - Index mapping
  • LC 106: Construct from Inorder & Postorder - Array slicing
  • LC 113: Path Sum II - Backtracking paths
  • LC 114: Flatten Binary Tree - In-place modification
  • LC 116: Populating Next Right Pointers - Level connection
  • LC 129: Sum Root to Leaf Numbers - Number construction
  • LC 173: Binary Search Tree Iterator - Iterator design
  • LC 199: Binary Tree Right Side View - Level last element
  • LC 222: Count Complete Tree Nodes - Binary search on tree
  • LC 230: Kth Smallest in BST - Inorder property
  • LC 236: Lowest Common Ancestor - Classic LCA
  • LC 298: Binary Tree Longest Consecutive - Path tracking
  • LC 314: Binary Tree Vertical Order - Column indexing
  • LC 437: Path Sum III - Prefix sum on tree
  • LC 513: Find Bottom Left Tree Value - Level order variant
  • LC 536: Construct from String - Parsing to tree
  • LC 654: Maximum Binary Tree - Monotonic stack
  • LC 863: All Nodes Distance K - Graph conversion

# Hard Problems (Advanced)

  • LC 124: Binary Tree Maximum Path Sum - Global optimization
  • LC 297: Serialize and Deserialize - String to tree
  • LC 834: Sum of Distances in Tree - Rerooting technique
  • LC 968: Binary Tree Cameras - Greedy on tree

# 2) LC Example

# 2-1) Construct Binary Tree from Preorder and Inorder Traversal

# python
# LC 105. Construct Binary Tree from Preorder and Inorder Traversal
# V0
# IDEA : BST property
class Solution(object):
    def buildTree(self, preorder, inorder):
        if len(preorder) == 0:
            return None
        if len(preorder) == 1:
            return TreeNode(preorder[0])
        ### NOTE : init root like below (via TreeNode and root value (preorder[0]))
        root = TreeNode(preorder[0])
        """
        NOTE !!!
        -> # we get index of root.val from "INORDER" to SPLIT TREE
        """
        index = inorder.index(root.val)  # the index of root at inorder, and we can also get the length of left-sub-tree, right-sub-tree ( preorder[1:index+1]) for following using
        # recursion for root.left
        #### NOTE : the idx is from "INORDER"
        #### NOTE : WE idx from inorder in preorder as well
        #### NOTE : preorder[1 : index + 1] (for left sub tree)
        root.left = self.buildTree(preorder[1 : index + 1], inorder[ : index]) ### since the BST is symmery so the length of left-sub-tree is same in both Preorder and Inorder, so we can use the index to get the left-sub-tree of Preorder as well
        # recursion for root.right
        root.right = self.buildTree(preorder[index + 1 : ], inorder[index + 1 :]) ### since the BST is symmery so the length of left-sub-tree is same in both Preorder and Inorder, so we can use the index to get the right-sub-tree of Preorder as well
        return root

# 2-2) Construct Binary Tree from Inorder and Postorder Traversal

# python
# LC 106 Construct Binary Tree from Inorder and Postorder Traversal
# V0
# IDEA : Binary Tree property, same as LC 105
class Solution(object):
    def buildTree(self, inorder, postorder):
        if not inorder:
            return None
        if len(inorder) == 1:
            return TreeNode(inorder[0])
        ### NOTE : we get root from postorder
        root = TreeNode(postorder[-1])
        """
        ### NOTE : the index is from inorder
        ### NOTE : we get index of root in inorder
        #    -> and this idx CAN BE USED IN BOTH inorder, postorder (Binary Tree property)
        """
        idx = inorder.index(root.val)
        ### NOTE : inorder[:idx], postorder[:idx]
        root.left = self.buildTree(inorder[:idx], postorder[:idx])
        ### NOTE : postorder[idx:-1]
        root.right =  self.buildTree(inorder[idx+1:], postorder[idx:-1])
        return root

# 2-3) Binary Tree Paths

# LC 257 Binary Tree Paths

# V0
# IDEA : BFS
class Solution:
    def binaryTreePaths(self, root):
        res = []
        ### NOTE : we set q like this : [[root, cur]]
        cur = ""
        q = [[root, cur]]
        while q:
            for i in range(len(q)):
                node, cur = q.pop(0)
                ### NOTE : if node exist, but no sub tree (i.e. not root.left and not root.right)
                #         -> append cur to result
                if node:
                    if not node.left and not node.right:
                        res.append(cur + str(node.val))
                ### NOTE : we keep cur to left sub tree
                if node.left:
                    q.append((node.left, cur + str(node.val) + '->'))
                ### NOTE : we keep cur to left sub tree
                if node.right:
                    q.append((node.right, cur + str(node.val) + '->'))
        return res

# V0'
# IDEA : DFS
class Solution:
    def binaryTreePaths(self, root):
        ans = []
        def dfs(r, tmp):
            if r.left:
                dfs(r.left, tmp + [str(r.left.val)])
            if r.right:
                dfs(r.right, tmp + [str(r.right.val)])
            if not r.left and not r.right:
                ans.append('->'.join(tmp))
        if not root:
            return []
        dfs(root, [str(root.val)])
        return ans

# 2-4) Binary Tree Longest Consecutive Sequence

# LC 298 Binary Tree Longest Consecutive Sequence
# V0
# IDEA : DFS
class Solution(object):
    def longestConsecutive(self, root):
        if not root:
            return 0

        self.result = 0
        self.helper(root, 1)

        return self.result

    def helper(self, root, curLen):
        self.result = curLen if curLen > self.result else self.result
        if root.left:
            if root.left.val == root.val + 1:
                self.helper(root.left, curLen + 1)
            else:
                self.helper(root.left, 1)
        if root.right:
            if root.right.val == root.val + 1:
                self.helper(root.right, curLen + 1)
            else:
                self.helper(root.right, 1)

# V0'
# IDEA : BFS
class Solution(object):
    def longestConsecutive(self, root):
        if root is None:
            return 0

        stack = list()
        stack.append((root, 1))
        maxLen = 1
        while len(stack) > 0:
            node, pathLen = stack.pop()
            if node.left is not None:
                if node.val + 1 == node.left.val:
                    stack.append((node.left, pathLen + 1))
                    maxLen = max(maxLen, pathLen + 1)
                else:
                    stack.append((node.left, 1))
            if node.right is not None:
                if node.val + 1 == node.right.val:
                    stack.append((node.right, pathLen + 1))
                    maxLen = max(maxLen, pathLen + 1)
                else:
                    stack.append((node.right, 1))

        return maxLen

# 2-5) Binary Search Tree Iterator

# LC 173. Binary Search Tree Iterator

# V0
# IDEA : STACK + tree
class BSTIterator(object):
    def __init__(self, root):
        """
        :type root: TreeNode
        """
        self.stack = []
        self.inOrder(root)

    def inOrder(self, root):
        if not root:
            return
        self.inOrder(root.right)
        self.stack.append(root.val)
        self.inOrder(root.left)

    def hasNext(self):
        """
        :rtype: bool
        """
        return len(self.stack) > 0

    def next(self):
        """
        :rtype: int
        """
        return self.stack.pop()

# Pattern Selection Strategy

Problem Analysis Flowchart:

1. Does the problem require visiting nodes in specific order?
   ├── YES → Use Traversal Templates (1 or 2)
   │   ├── Need all nodes level by level? → Level Order (Template 2)
   │   ├── Need specific order (pre/in/post)? → Template 1
   │   └── Need iterative approach? → Template 2
   └── NO → Continue to 2

2. Does the problem involve building/modifying tree structure?
   ├── YES → Use Construction Template (3)
   │   ├── From traversal sequences? → Template 3
   │   ├── From array/string? → Template 3 variant
   │   └── Serialize/Deserialize? → Custom Template 3
   └── NO → Continue to 3

3. Does the problem involve paths from root to leaves?
   ├── YES → Use Path Template (4)
   │   ├── Need all paths? → Template 4 with result collection
   │   ├── Need path sum? → Template 4 with sum tracking
   │   └── Need max/min path? → Template 4 with optimization
   └── NO → Continue to 4

4. Does the problem ask for tree properties?
   ├── YES → Use Property Template (5)
   │   ├── Height/Depth? → Template 5 basic
   │   ├── Balance/Symmetry? → Template 5 with comparison
   │   └── Diameter/Width? → Template 5 with global max
   └── NO → Continue to 5

5. Does the problem involve finding ancestors or distances?
   ├── YES → Use LCA Template (6)
   │   ├── Common ancestor? → Template 6
   │   └── Distance between nodes? → Template 6 + path tracking
   └── NO → Use Universal Template or reconsider problem type

# Decision Framework

  1. Identify pattern: Look for keywords (traversal, path, construct, property, ancestor)
  2. Choose template: Match problem requirements to template capabilities
  3. Adapt solution: Modify template for specific constraints
  4. Optimize: Consider iterative vs recursive, space vs time tradeoffs

# Summary & Quick Reference

# Complexity Quick Reference

Operation Time Space Notes
Traversal (any order) O(n) O(h) h = height, O(log n) balanced
Level Order O(n) O(w) w = max width
Construction O(n) O(n) Building entire tree
Path Finding O(n) O(h) May need O(n) for all paths
Property Check O(n) O(h) Single pass usually sufficient
LCA O(n) O(h) Can optimize to O(log n) for BST
Serialize/Deserialize O(n) O(n) String representation

# Template Quick Reference

Template Best For Avoid When Key Code Pattern
Universal General recursion Need iterative if not root: return
Traversal Recursive Clean code Stack overflow risk Order determines position
Traversal Iterative Large trees Simple recursion works Stack/Queue manipulation
Construction Building trees Modifying existing Index mapping crucial
Path Root-to-leaf Any path in tree Backtracking pattern
Property Tree metrics Path problems Bottom-up calculation
LCA Common ancestors Simple traversal Return early pattern

# Common Patterns & Tricks

# Pattern: Global Variable for Optimization

class Solution:
    def maxPathSum(self, root):
        self.max_sum = float('-inf')

        def helper(node):
            if not node:
                return 0
            left = max(0, helper(node.left))
            right = max(0, helper(node.right))
            self.max_sum = max(self.max_sum, left + right + node.val)
            return max(left, right) + node.val

        helper(root)
        return self.max_sum

# Pattern: Level Processing with Delimiter

def rightSideView(root):
    if not root:
        return []
    result, queue = [], [root, None]

    while queue:
        node = queue.pop(0)
        if node:
            if queue[0] is None:  # Last node in level
                result.append(node.val)
            if node.left:
                queue.append(node.left)
            if node.right:
                queue.append(node.right)
        elif queue:  # Level delimiter
            queue.append(None)

    return result

# Problem-Solving Steps

  1. Analyze: Identify tree structure and required output
  2. Choose: Select appropriate template based on pattern
  3. Implement: Adapt template to specific requirements
  4. Optimize: Consider iterative alternatives, pruning
  5. Test: Check null root, single node, skewed tree

# Common Mistakes & Tips

🚫 Common Mistakes:

  • Forgetting base case: Always check if not root
  • Modifying during traversal: Can break tree structure
  • Not handling null children: Check before accessing .left/.right
  • Wrong traversal order: Preorder ≠ Inorder ≠ Postorder
  • Reference vs value: Python passes object references

✅ Best Practices:

  • Use meaningful variable names: left_height not l
  • Handle edge cases first: Empty tree, single node
  • Consider both recursive and iterative: Know tradeoffs
  • Track state carefully: Use helper functions for clarity
  • Test with skewed trees: Worst case for recursion depth

# Interview Tips

  1. Clarify: Ask about tree properties (balanced? BST? complete?)
  2. Draw: Visualize small examples (3-5 nodes)
  3. Approach: Start with recursive, mention iterative alternative
  4. Complexity: Always state time and space complexity
  5. Edge cases: null, single node, all left/right skewed
  • Binary Search Tree (BST): When nodes follow left < root < right
  • Heap: Complete binary tree with heap property
  • Graph: Trees are special case of graphs (acyclic, connected)
  • Trie: Tree for prefix matching
  • B-Tree: Self-balancing tree for databases

# Java Implementation Notes

// Java TreeNode definition
class TreeNode {
    int val;
    TreeNode left, right;
    TreeNode(int x) { val = x; }
}

// Use Queue interface with LinkedList
Queue<TreeNode> queue = new LinkedList<>();

// Stack for iterative traversal
Stack<TreeNode> stack = new Stack<>();

# Python Implementation Notes

# TreeNode definition
class TreeNode:
    def __init__(self, val=0, left=None, right=None):
        self.val = val
        self.left = left
        self.right = right

# Use collections.deque for O(1) operations
from collections import deque
queue = deque([root])

# List as stack (append/pop)
stack = []

Must-Know Problems for Interviews: LC 94, 102, 104, 105, 110, 124, 226, 236, 297, 543 Advanced Problems: LC 124, 297, 437, 863, 968 Keywords: binary tree, traversal, DFS, BFS, recursion, path, LCA, construction

← Back to Cheat Sheets Edit on GitHub →
